Version: Reality 5.6

Reality Hub LE Mode

LE Mode is a no-cost edition of the Reality Hub, available for commercial use. Reality Hub LE comes with its own license and requires no online activation.

LE Mode includes licenses for essential modules such as Launcher, Nodegraph, Lino Playout, Template Builder, and more. It is fully capable of driving a local Reality 5 engine installed on the same machine.

System Overview

alt text

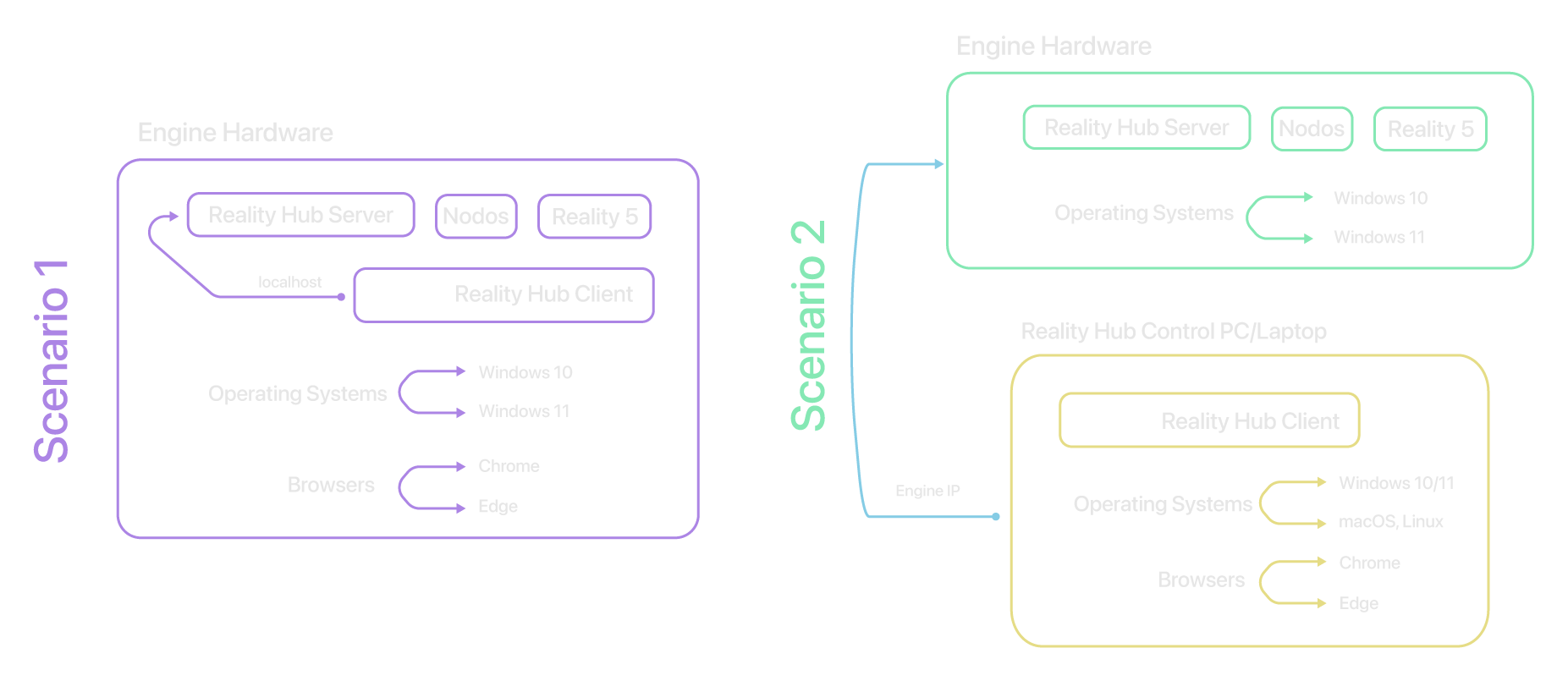

Reality Hub LE Mode System Overview

You can use Reality Hub LE in two different scenarios, as illustrated in the diagram above:

Scenario 1

All required software is installed on a single engine hardware, which runs Reality 5.6 controlled via a browser. Scenario 1 requires a Windows 10 or Windows 11 operating system.

Scenario 2

All required software is installed on a single engine hardware, but Reality 5.6 is controlled from a separate machine called the Reality Hub Control PC. This scenario allows you to use not only Windows 10 or Windows 11 but also Linux or macOS operating systems on the control PC.
