Please do not plug any peripheral devices into the ZD Box or ZED X camera, except for those that were included in your shipment. Connecting unauthorized peripheral devices such as wireless mice, USBs, or any other device may lead to production issues.

alt text

ZED Box Back

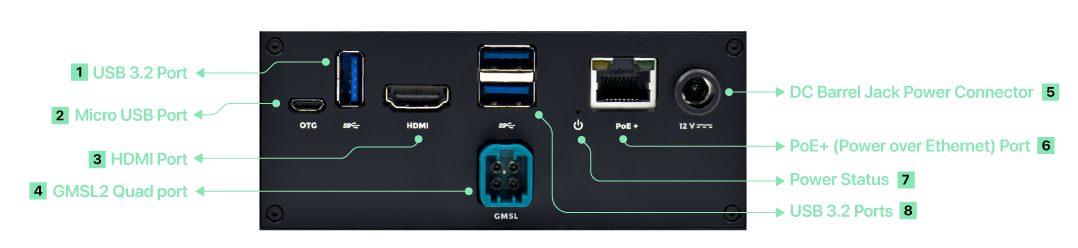

The illustration above shows the ZED Box ports and inputs.

alt text

ZED Box Back

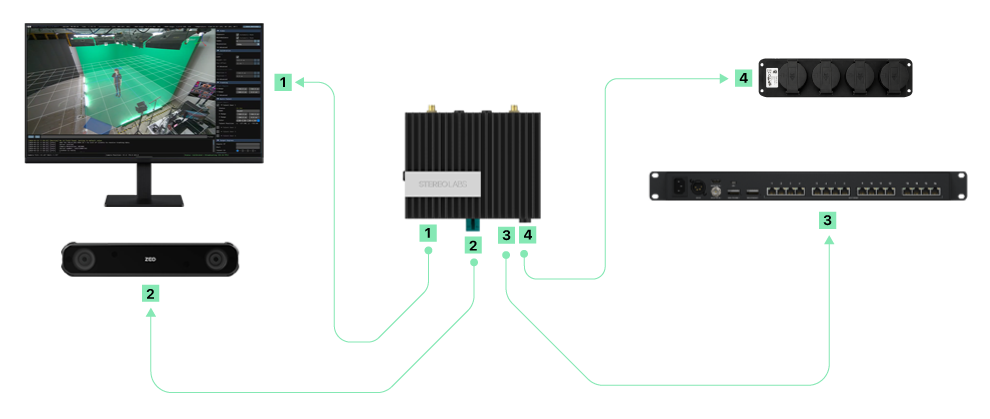

Establish the following connections, as shown above.

  1. HDMI to Monitor
  2. 1-to-4 GMSL2 to ZED X Stereo Camera
  3. PoE+ Port to Tracking Network
  4. DC Barrel Jack Power to Power Plug Socket
