Version: EVO III

RGB Status LED

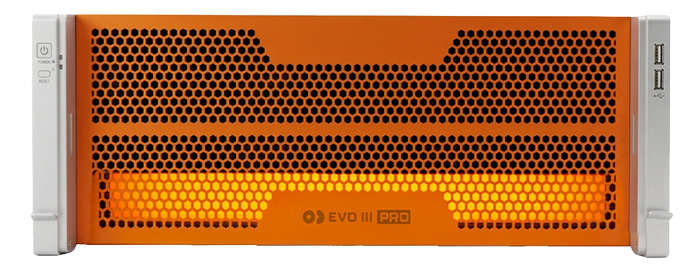

Nominal Operation​

  • State: Solid Orange
  • Description: System operating within normal parameters. No action required.

alt text

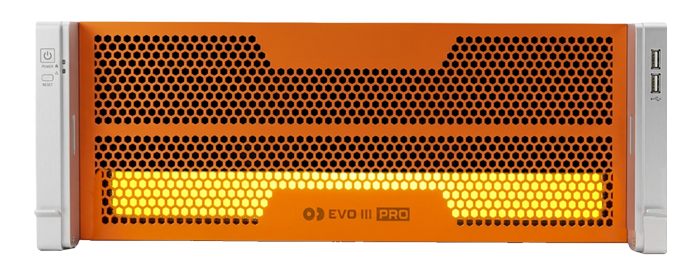

Warning State​

  • State: Blinking Yellow / Orange
  • Description: System warning detected. Administrative check required.

alt text

Maintenance Identification Feature​

  • Trigger: Clicking the Reset button on chassis.
  • Behavior: Blinking Orange indicator.
  • Purpose: Visual device identification during maintenance or troubleshooting in high-density multi-device rack configurations.
