Channels Configuration

Channels configuration allows you to create channel(s), add engine(s) to them, and define their role as Preview or Program. You can create as many channels as your setup requires and add as many engines as necessary.

Channels configuration is essential for launch configurations. First, you create a channel, then assign your engine(s) to it, and finally define their role. When you switch to the launching phase, you create a show, add the channel(s) to it, and start the launch.

Usage​

  • Go to Main Menu > Configuration.
  • In the left menu, expand Engines, then select Channels.

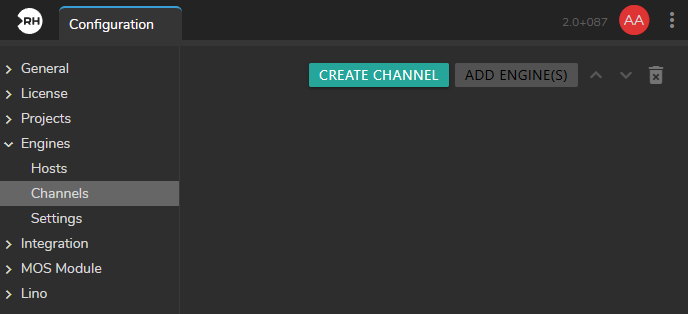

alt text

Empty Channels Configuration

  • The empty Channels configuration screen will look like the image above. Click the Create Channel button.

alt text

Entering Channel Name

  • In the New Channel pop-up menu, enter a name for your configuration and click OK.
  • Click on the Add Engine(s) button.

alt text

Adding Engine to Channel

  • In the Add Engine(s) to Channel pop-up menu, select your engine and click OK.

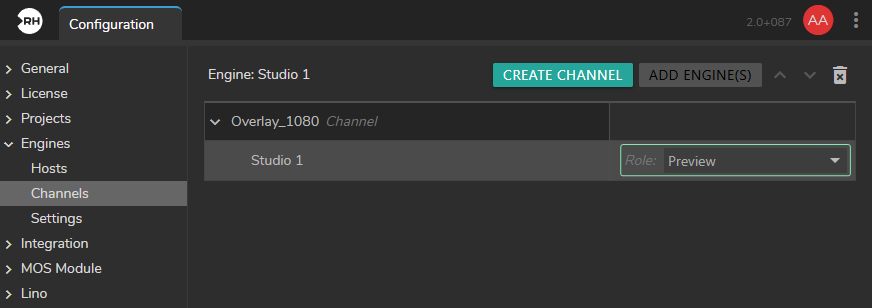

alt text

Select Engine Role

  • Optionally, select the engine role as Preview or Program from the dropdown menu, as illustrated above.
