Version: EVO III

Network Connections

info

EVO III generation supports up to a 10 GbE house network and a 5 GbE tracking network.

Recommendations​

  • Use a dedicated tracking network to ensure an uninterrupted flow of tracking data.
  • Identify where the router, switches, and EVO III will be located.
  • Assign static IP addresses to EVO II to avoid IP conflicts and ensure consistent connectivity.

alt text

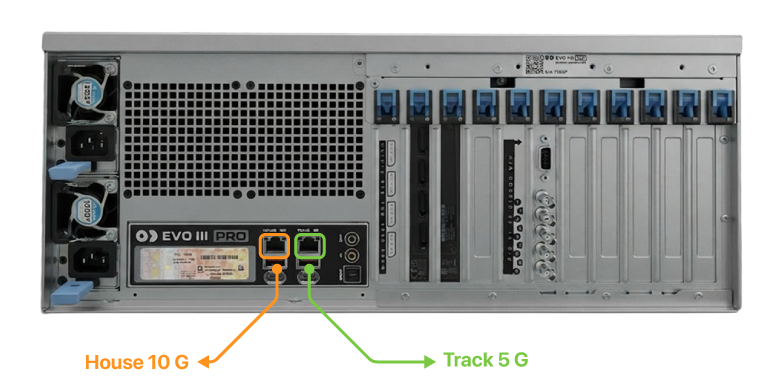

Netwok Connections on EVO III Pro

Connect your house network and tracking network cables to their respective Ethernet ports, as illustrated above.
