Version: EVO III

SDI and IP Input/Output Cards

EVO III supports the following AJA devices:

  • AJA Corvid 44 12G BNC
  • AJA Corvid 44 BNC
  • AJA Corvid 88
  • AJA KONA IP25 (*)
(*) AJA KONA IP25 is only supported with Reality 5.8. For more details, please visit https://docs.zerodensity.io/reality-5.8/whats-new/

Your EVO III system will arrive with your selected AJA card installed. Identify your AJA Card model and make sure your connections match the specific AJA card installed.

Example​

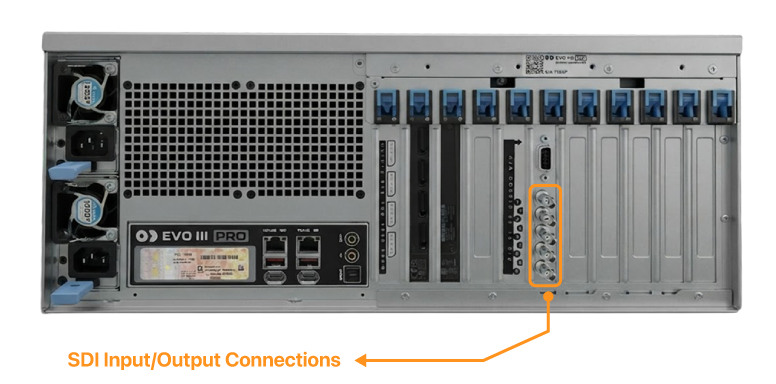

AJA Corvid 44 12G Connections on EVO III

  • Connect SDI Inputs/Outputs

    • Use the BNC ports on your AJA card for SDI signals.
    • Map inputs/outputs according to your studio configuration.

    Example:

    • SDI Input 1 ➔ Camera A Feed
    • SDI Output 1 ➔ Broadcast Monitor
